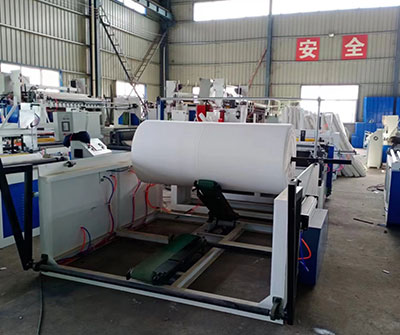

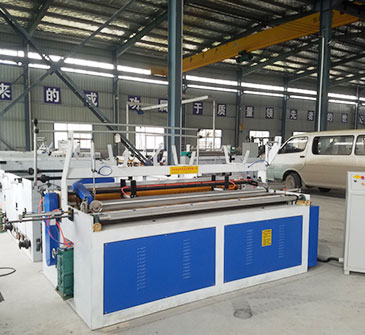

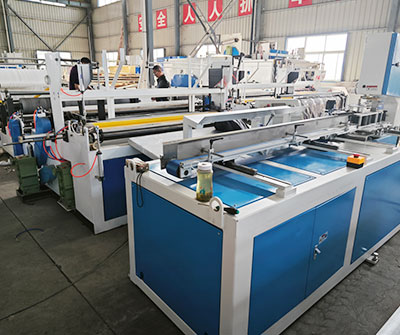

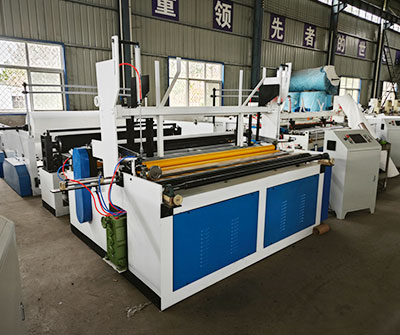

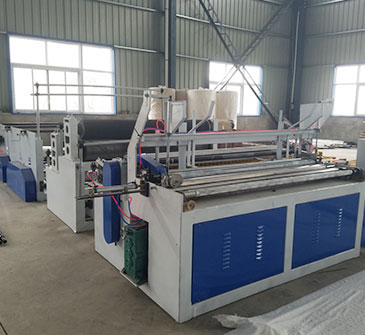

Toilet Paper Machine
Capacity
2-4t/8h
Raw material
Parent Rolls

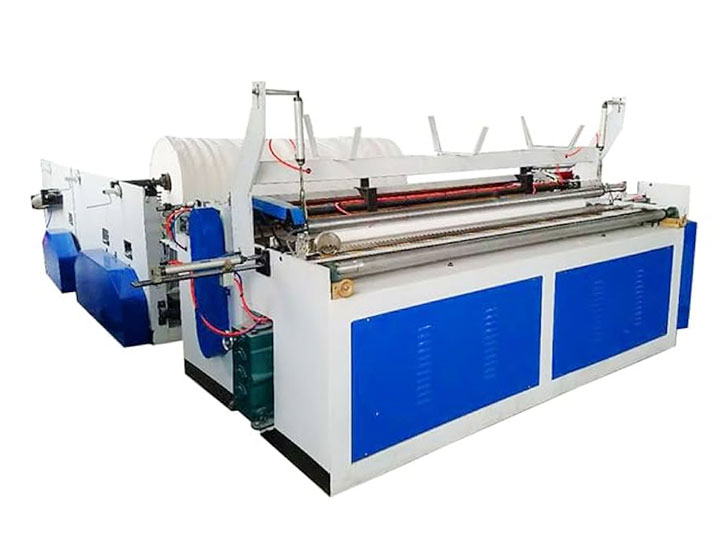

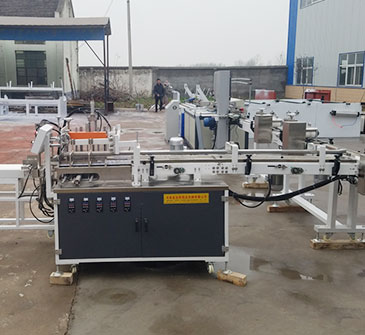

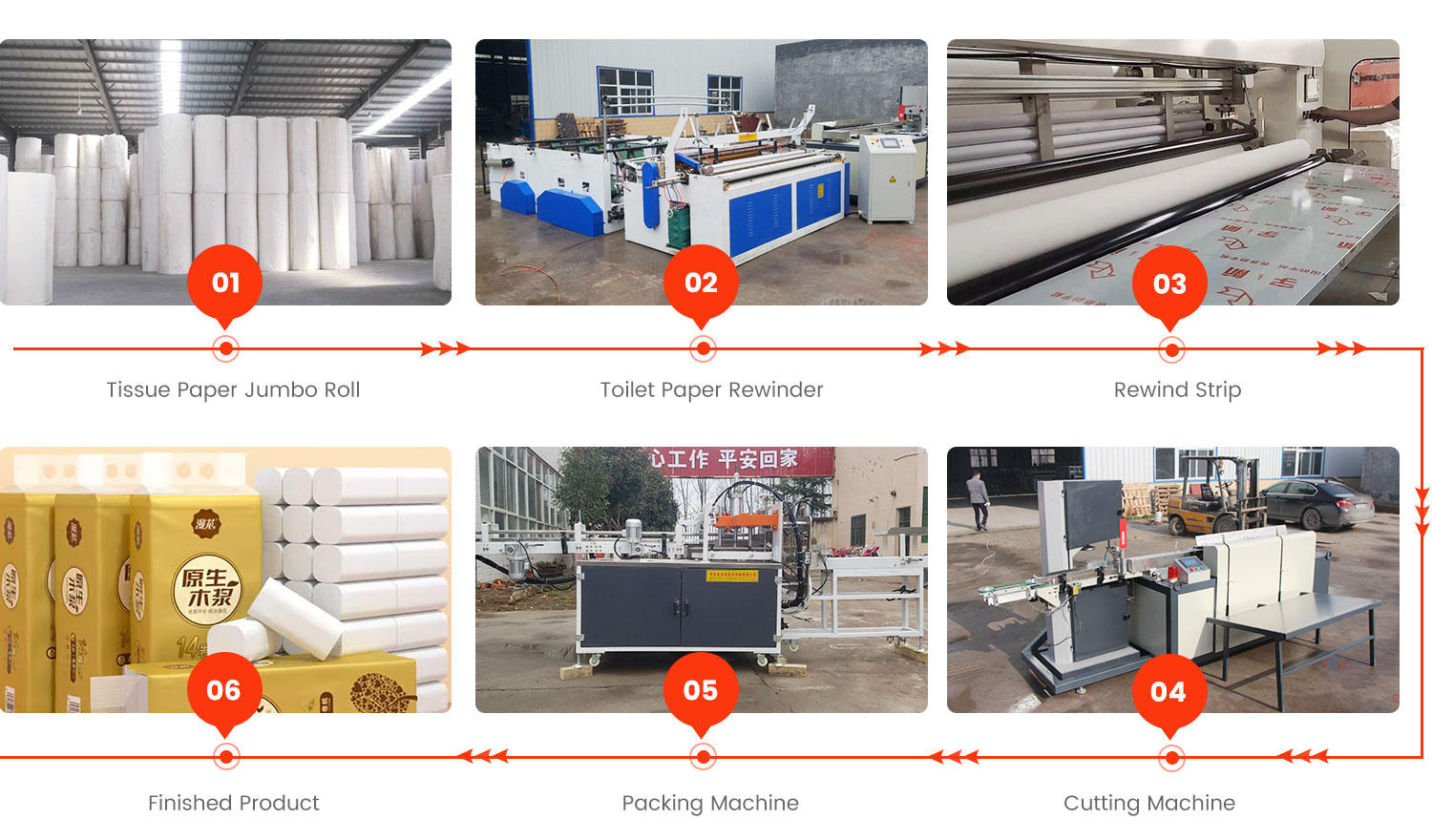

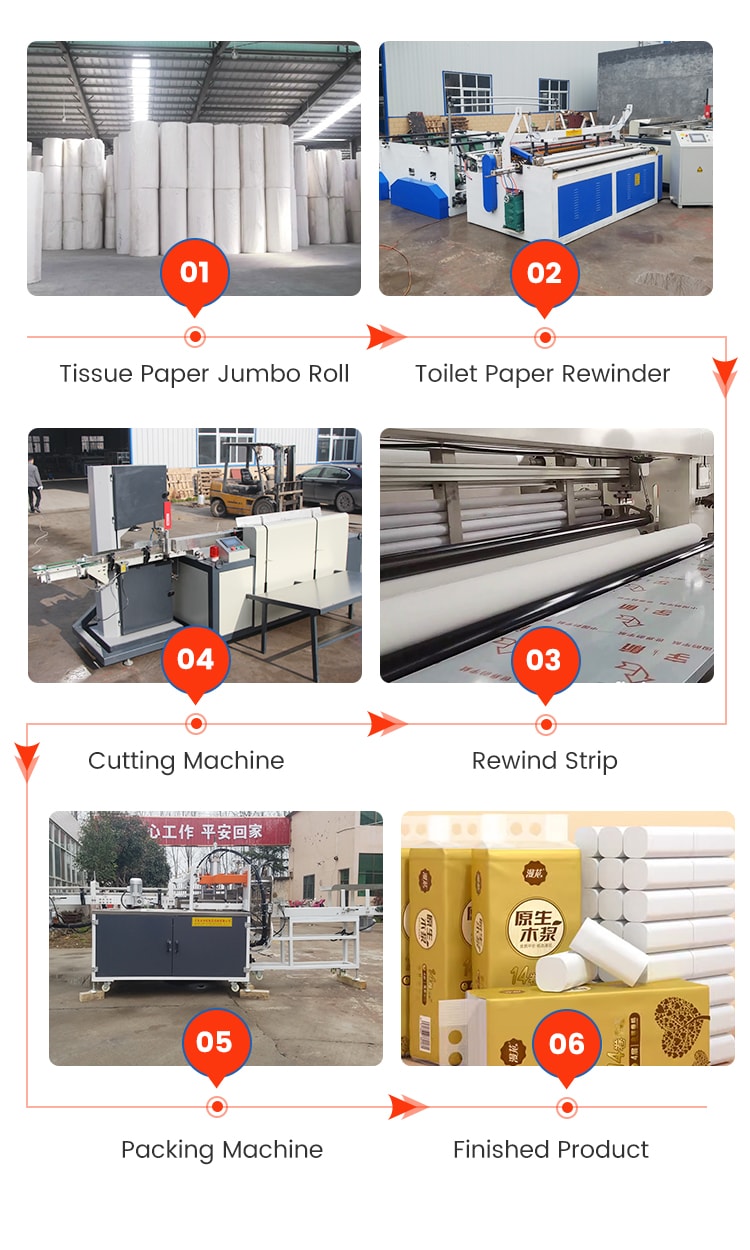

The toilet paper rewinding machine is through rewinding the jumbo roll, Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products.
Get a Quote
Product Introduction

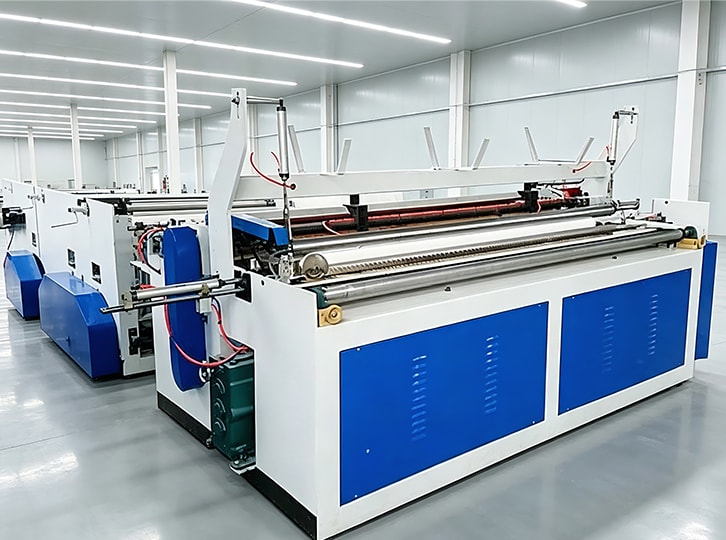

Our factory original produce automatic toilet paper rewinder adopting international advanced PLC computer programming technology, and frequency adjustable speed, and electronic brake and the configuration has touch type picture human-computer interface system, latest development free core volume paper forming complex volume system, reached rewind volume effect with core or no core , one machine more with more usage, makes machine in years of market put using can full upgrade, makes the operation more convenient and shortcut, greatly improve the production efficiency.
Get a Quote
Working Principle
The working principle is rewinding and perforating the big paper rolls according to need. The machine uses spiral brade for dotted lines stamping, with the advantages of little wearing rate, low noise leveland distinct embossed patterns. The tightness and sheet size and weight can be adjustable.
Product Features
Automatic trimming, glue spraying, sealing, and shafting are completed synchronously, so that no paper loss.
Using PLC computer to program the finished paper to achieve the tightness and looseness of the different tightness.
Can choose double-sided embossing, gluing compound, which can make paper more soft.
Equipped with processing unintentional, solid, paper tube toilet paper. Can instantly switch between products.
Product Parameters
| Name | Automatic toilet paper rewinder machine | ||||
| Model | MJT1575 | MJT1880 | MJT2400 | MJT2800 | MJT3200 |
| Original paper width | 1760mm | 2160mm | 2750mm | 3000mm | 3200mm |
| Original paperexternal dia | 1100mm(specification can order by customer need) | ||||
| Finished product dia | Adjustable | ||||
| Program controller | PLC computer Program | ||||
| Produce speed | 0-200meter/min | ||||
| Embossing parts | Steel roller,wool roller,Rubber rollers | ||||
| Embossing situation | No Embossing ,single layer Embossing,double layer Embossing (need order) | ||||
| Machine conveyor | Continuously variable transmission, the host machine not adopt belt conveyor to ensure every section distance and the whole length accuraction . | ||||
| Paper remove shelf | 1-3 layers | ||||
| Brake | Electric,pneumatic control | ||||
| Main power | 4kw-11kw | ||||
| Dimension | according different model | ||||
| Total weight | according different model | ||||
Still not finding what you're looking for?
Contact our consultants for more available products.
Contact Us

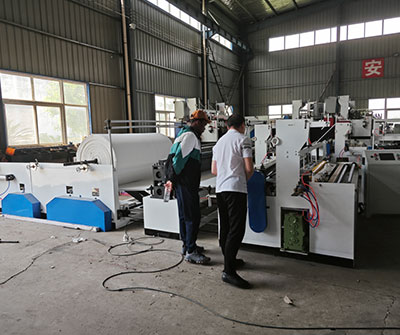

Yugong Factory Display
Henan Yugong Machinery Co., Ltd located in Zhengzhou City, Henan Province.Our factory has rich experience in paper making machine. Our main products include: Toilet Paper Rewinding Machine, Facial Tissue Machine, Napkin Paper Machine, and other Paper Processing Machinery. We are committed to provide customers with a complete solution for paper making project, welcome the friends to visit us all over the world.
