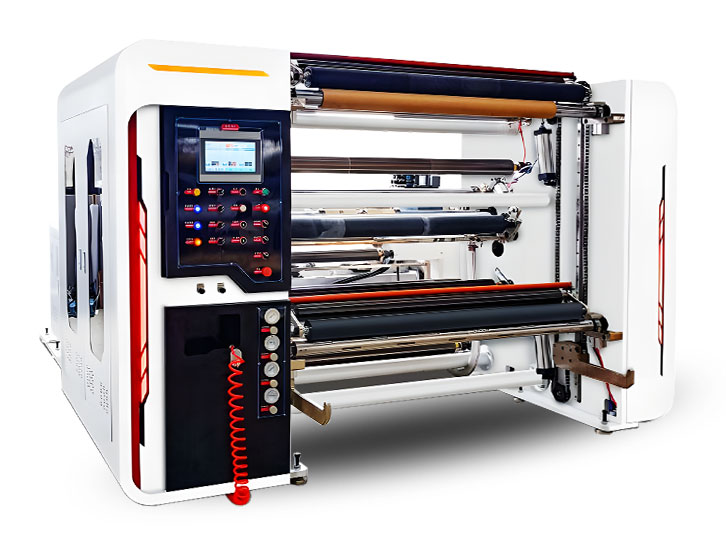

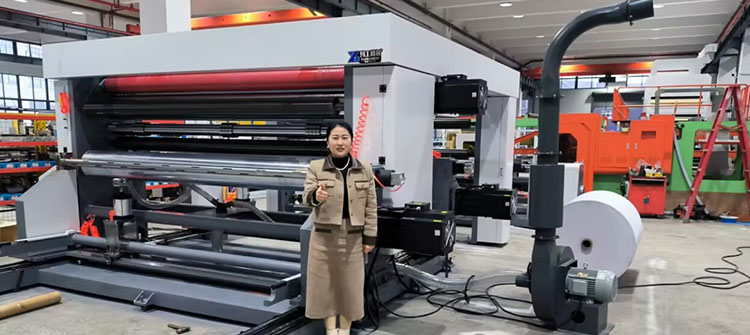

Automatic Slitting Machine
Unwinding Diameter
800-1600mm
Rewinding Diameter
700-1500mm
Suitable for slitting of various super-large rolls, such as 16gsm-500gsm, paper, offset paper, self-adhesive paper, coated paper, white cardboard, aluminum foil, PVC, Bopp, OPP, PET, plastic film, kraft paper, thermal paper, non-woven fabric, PP, PET, mica tape, film, rubber strip, transparent tape and other roll packaging materials slitting + rewinding, etc.
Get a Quote
Product Introduction
Yugong Machinery manufactures a full range of slitting, rewinding, and roll‑to‑sheet cutting equipment for paper, film, foil, laminates, and self‑adhesive materials. Our product series cover working widths up to 1800 mm, speeds up to 500 m/min, and cutting precision of ±0.2 mm, with PLC controls, servo drives, and automatic unwinding systems across all models. We serve the printing, packaging, and paper converting industries with reliable, high‑performance converting solutions.
Get a Quote
Product Features
Intelligent Control System
All models are equipped with Siemens PLC controls and HMI touchscreens, featuring automatic length counting, preset stop, and fault alarm functions for consistent, repeatable operation.
Automated Material Handling
Unwinding systems include automatic roll loading and web edge guidance. Select models offer hydraulic auto unloading, reducing manual intervention during production runs.
Precision Slitting & Cutting
Equipped with circular or straight blades and trim reject fans for clean edge removal. Slitting precision reaches ±0.2 mm across the product range.
High-Speed Performance
Operating speeds up to 500 m/min with servo-driven rewinding and closed-loop tension control, available in working widths from 800 mm to 1800 mm to suit different production scales.
Product Parameters
| Parameter | YG-1100A | YG-1300A | YG-1600A | YGZ-1400 Sheet Cutter |
| Max. web width | 1100 mm | 1300 mm | 1600 mm | 1400 mm |
| Max. unwind diameter | 1400–1600 mm | 1400–1600 mm | 1400–1600 mm | 1400 mm |
| Min. slitting width | 50 mm | 50 mm | 50 mm | Not applicable |
| Max. rewind diameter | 1000–1200 mm | 1000–1200 mm | 1000–1200 mm | Not applicable |
| Cutting length range | Not applicable | Not applicable | Not applicable | 300–1200 mm |
| Slitting speed | 10–450 m/min | 10–450 m/min | 10–450 m/min | Not applicable |
| Material range | 16–500 gsm | 16–500 gsm | 16–500 gsm | 70–500 gsm |
| Total power | 22 kW | 22 kW | 24 kW | 10 kW |
| Machine weight | 5600 kg | 6000 kg | 6400 kg | 5000 kg |
Still not finding what you're looking for?
Contact our consultants for more available products.
Contact Us

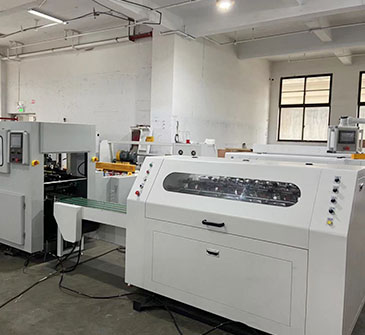

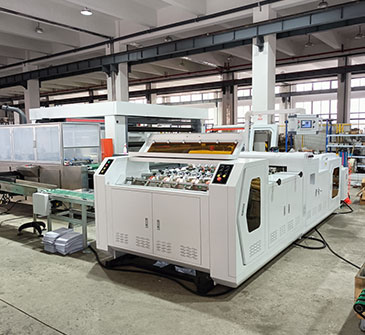

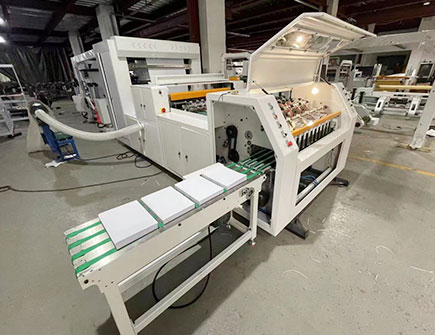

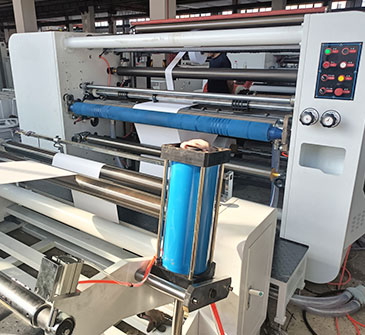

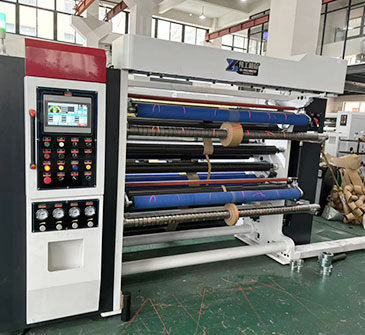

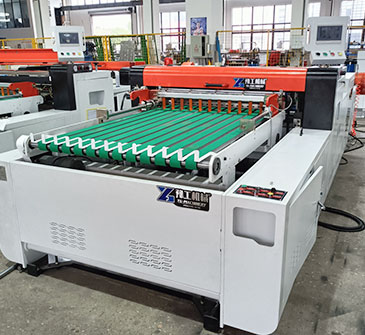

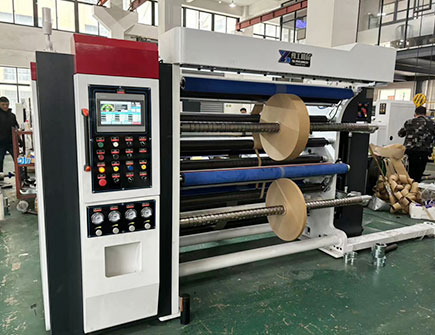

Yugong Factory Display
Henan Yugong Machinery Co.,Ltd.Located in China's nationalcentral city-Zhengzhou,with abundant resources and convenienttransportation. Our company is a integratedlargescale manufa-ctyring enterprise.Our company experienced 19 years of high-speed development,gathering large number of talents and winning sound repulationand credibility.
