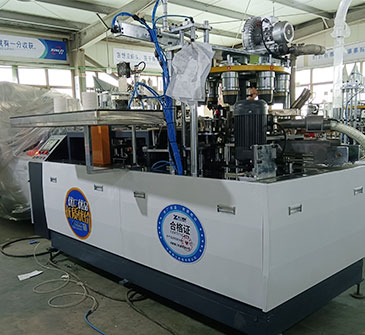

Paper Cup Making Machine
Capacity:
75-150pcs/min
Cup Size:
2-16oz
Paper cup making machine is designed to manufacture single and double sided PE coated paper cups that can be used to serve hot & cold beverages and hold food items. The paper cup making machine can also produce various types of paper bowls by switching the mode.
Get a Quote
Product Introduction

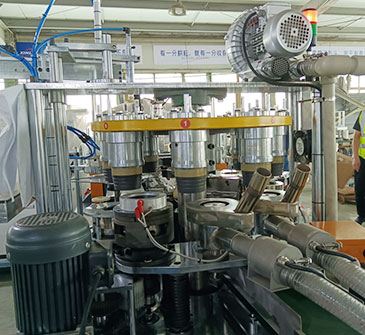

To produce the cups, a special coated paper with one-side or double side PE lamination is used. Pre-cut paper is feeding automatically to a cone mould, and then the two edges are welded by normal heater or ultrasonic without any glue. And at the same time, the bottom paper roll is die cut and fed to the cup. Then, the cup bottom is preheated and folded with the bottom paper to heating, knurling, curling and final step the paper cup is finished and delivered.
Get a Quote

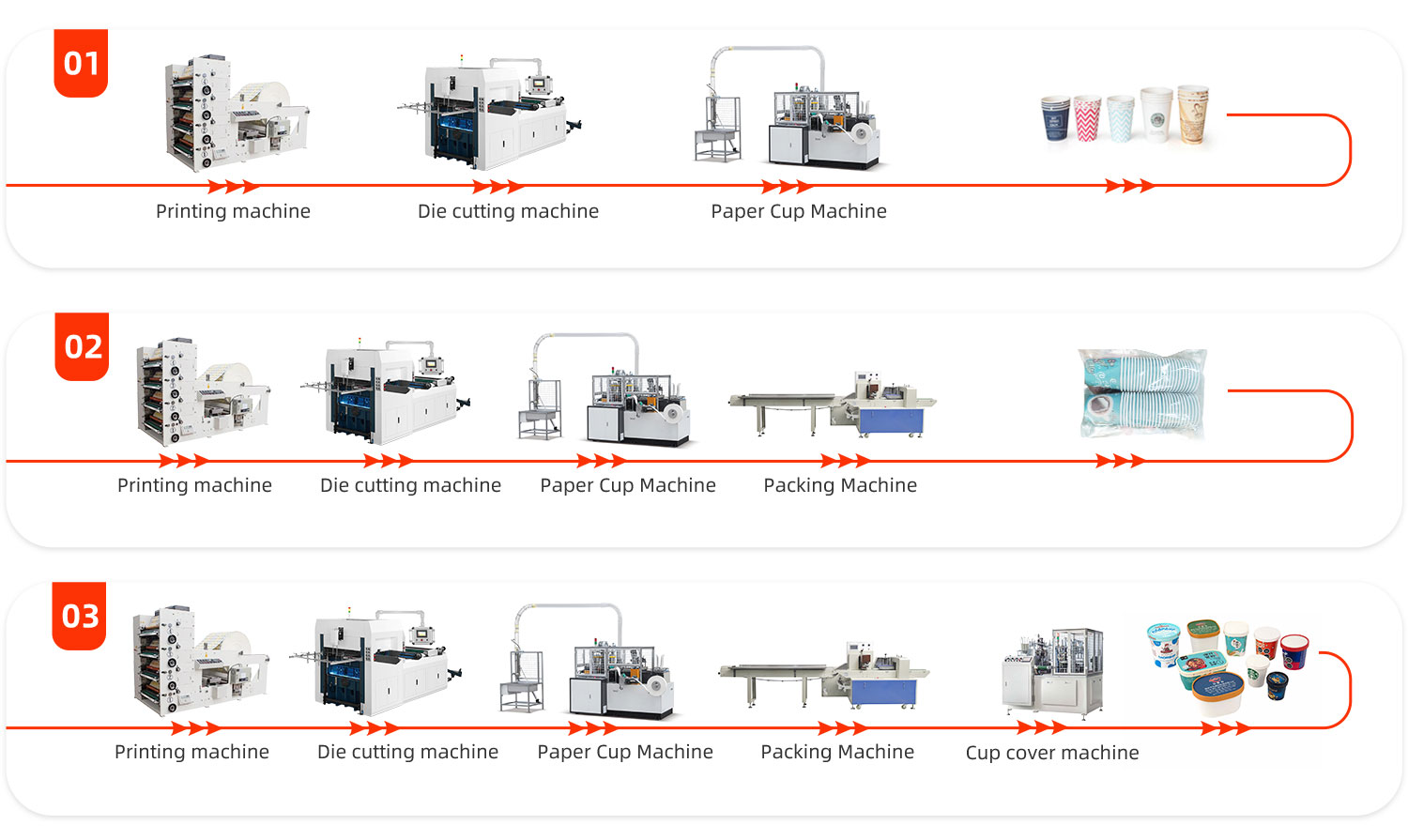

Product Process
You have three options for paper cup machine business according to your requirements. Contact us for lastesd price.

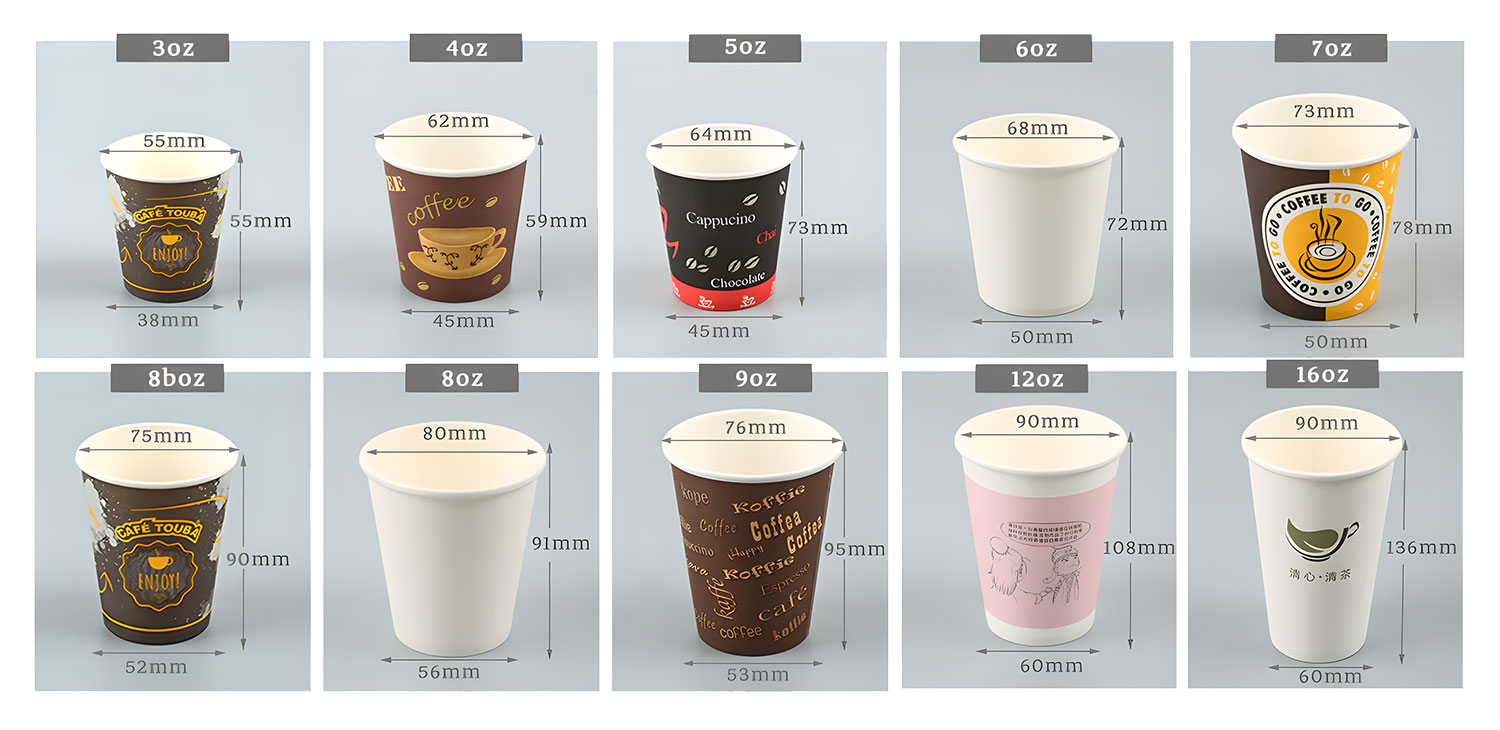

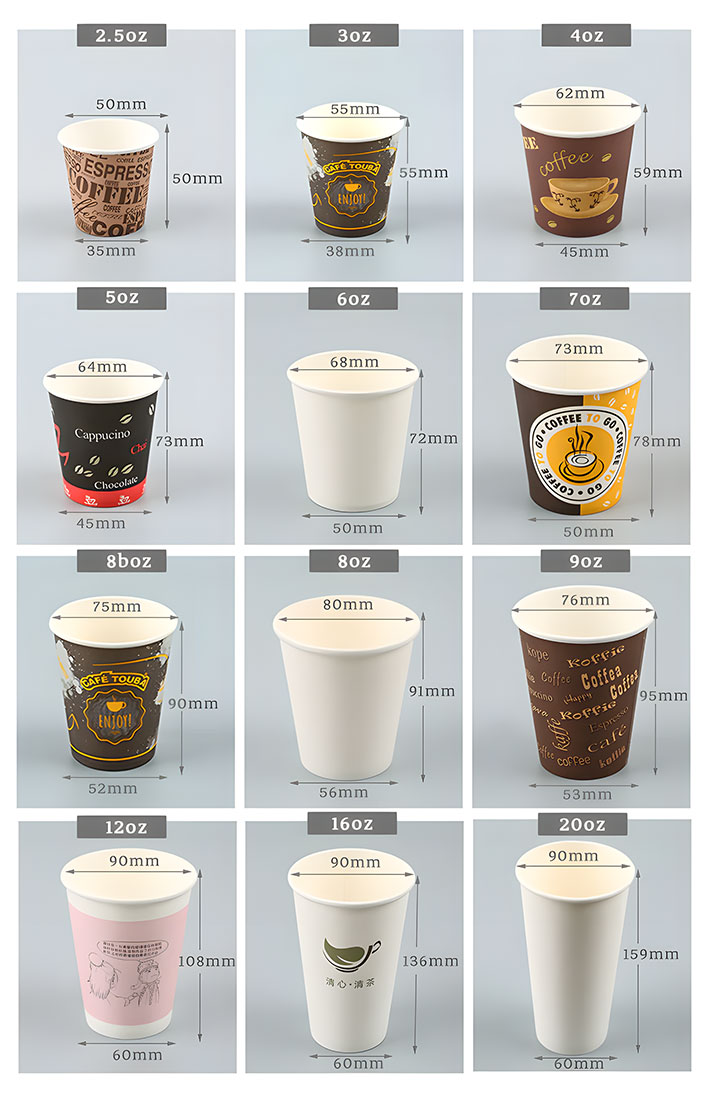

Paper cup size
YG produces 2-16OZ paper cups. in addition to round paper cups, it can also produce various special-shaped paper cupssuch as square, hexagonal, etc. it supports customization to meet the needs of different scenarios and drinking volumes.
Product Features
Paper cup machine is a kind of professional paper product production equipment with high automation, high production efficiency, strong applicability, environmental protection and energy saving. It is widely used in catering, food, medical and other fields, and is one of the key equipment to meet the large-scale demand for paper cups and paper bowls. In the future, paper cup machine will also develop in a more intelligent and flexible direction.
Reliability
Smart middle speed paper cup forming machine is provided with advantages of high performance,high efficiency and high quality.
High Efficiency and Energy Conservation
Advanced high-precision drive system. Bottom paper by servo tracking system,and raw material paper can be saved effectively.
Foreign Technical and Made in China
Paper bottom heating system（Switzerland Leister）. Every step in production is monitored by photocell (Japan Omron)and be reported.
User-friendly design

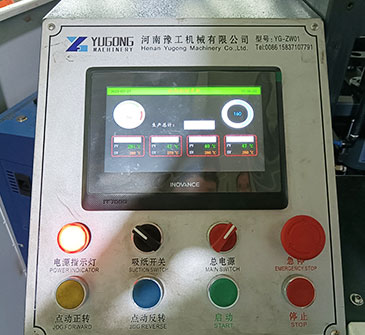

PLC system. Manual operation can be replaced by automatic paper cup counting and collection table with appropriate setting.
Product Parameters

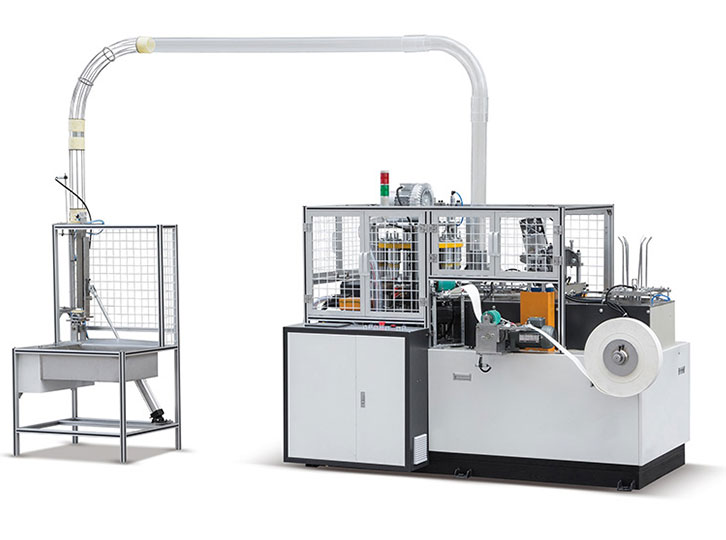

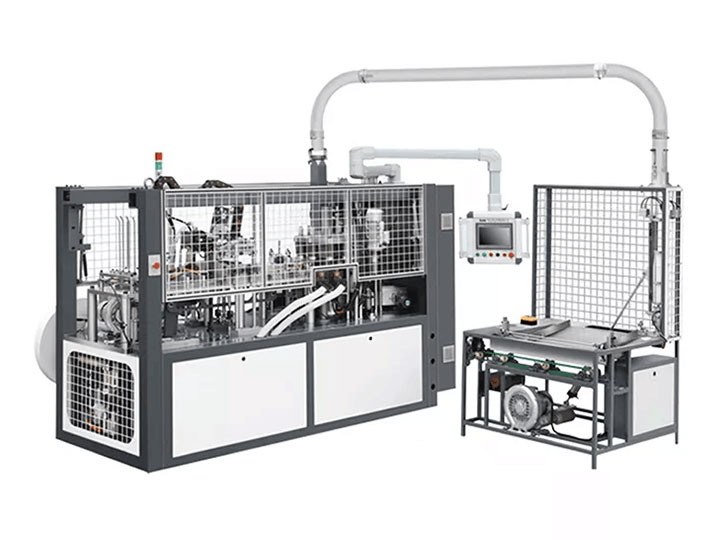

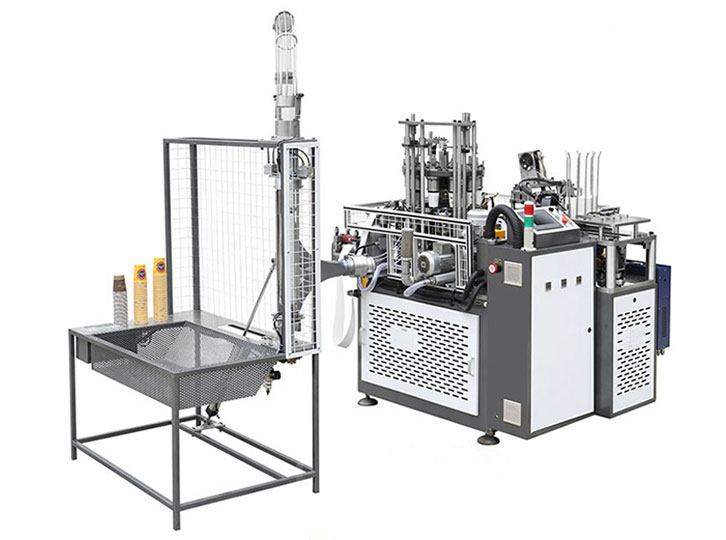

| Model | YG-DP10 | YG-DP16 | YG-GS120 | |
| Paper Cup Size | 2-9OZ | 2-16OZ | 2-16OZ | |
| Raw Material | One-side or two-side PE coated paper | |||
| Speed | 80-100 pcs/min | 70-90 pcs/min | 100-120 pcs/min | |
| Suitable paper weight | 160-350g;±20g | 160-350g;±20g | 160-350g;±20g | |
| Voltage supply | 380V, 50HZ | 380V, 50HZ | 380V, 50HZ | |
| General power | 7.8 kw | 5.5 kw | 7kw | |
| Working Air Source | 0.4-0.6mpa | 0.4-0.6mpa | 0.4-0.6mpa | |
| Net weight | 1680kg | 1680kg | 2000kg | |
|
Measurement
(L*W*H) |
2115*1000*1700mm | 2115*1000*1700mm | Main engine | 2180*1050*1600mm |
| Cup holder | 900*600*1800mm | |||
| Cup Side Sealing | Evergreen Ultrasonic | Evergreen Ultrasonic | Evergreen Ultrasonic | |
| Bottom Knurling | Heating | Heating | Hot Air System | |
| We can customize machine and mold according to customer’s requirement. | ||||
Still not finding what you're looking for?
Contact our consultants for more available products.
Contact Us

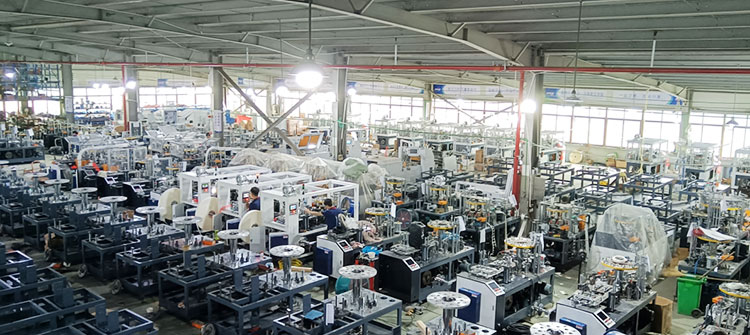

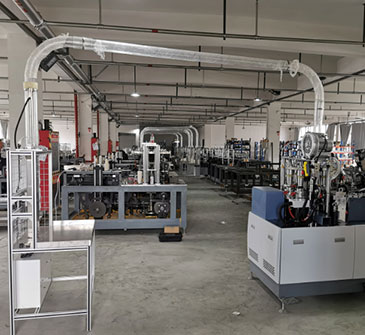

Yugong Factory Display
Henan Yugong Machinery Co., Ltd. is a large-scale comprehensive enterprise integrating R&D, production and sales, covering an area of 8,000m². It has a mature paper cup machine R&D team and sales team. After more than ten years of development, the company has strong technical strength, complete processing equipment and complete testing methods. All products are strictly inspected before they leave the market, meet international standards, have complete certificates and excellent quality, and are highly praised by domestic and foreign customers. After-sales service is guaranteed, and many customers return orders every month.
