Concrete Pump
Max. Vertical Delivery
Up to 150m
Max. Theoretical Output
Up to 60 m³/h
Power Source: Diesel Engine or Electric MotorComplete Concrete Pump Solutions for Every Scale of ProjectFrom minor repairs to major construction, our pump series delivers reliability, power, and efficiency. Engineered to meet diverse site requirements with optimal performance.
Get a Quote

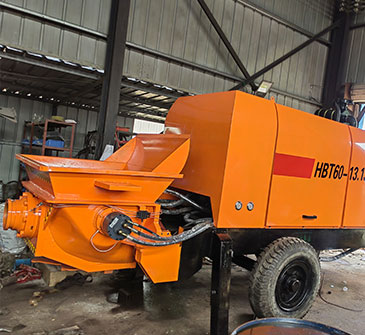

Product Introduction
The Yugong Concrete Pump Series represents a comprehensive range of high-pressure mechanical systems designed for the efficient and continuous conveyance of concrete. Ideal for applications spanning from residential plastering and floor heating screeds to large-scale infrastructure like bridges, tunnels, and high-rise buildings, our pumps are built for durability and performance. The series includes compact electric models for confined spaces and powerful diesel-driven units for demanding sites, all featuring robust S-valve systems for smooth operation with various concrete mixes, including small-aggregate and mortar.
Get a Quote
Product Features
High-Pressure & Efficient Pumping
Engineered with powerful piston pumps, delivering working pressures up to 23 MPa for efficient, long-distance, and high-rise concrete placement.
Advanced & Durable S-Valve System
The wear-resistant S-tube valve ensures reliable switching and consistent pumping performance for aggregates up to 50mm, minimizing downtime.
Robust Hydraulic System & Components
Features a stable, multi-circuit hydraulic system and hardened alloy wearing parts like the eye plate and cutting ring for extended service life under tough conditions.
Wide-Ranging Versatility

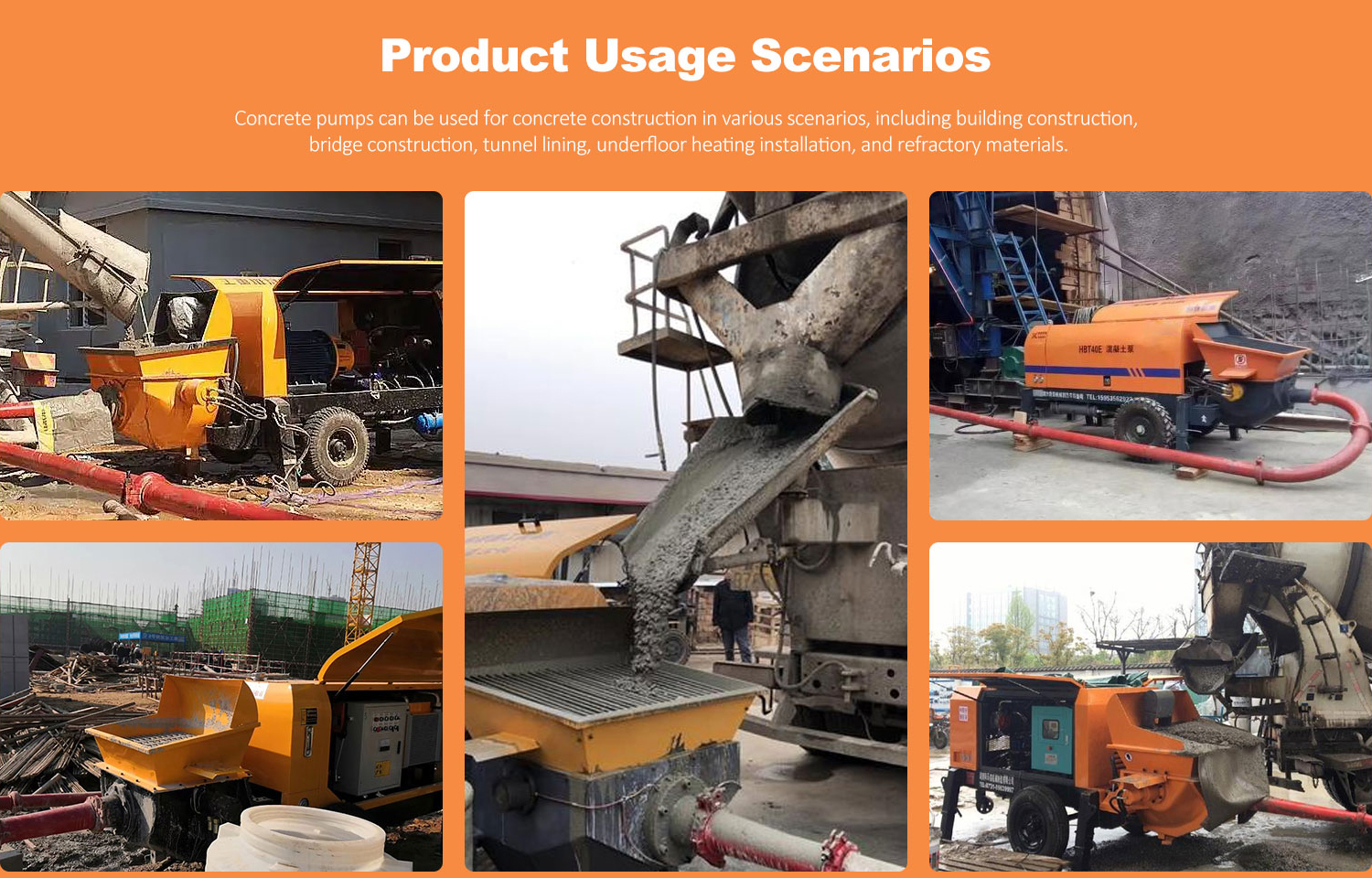

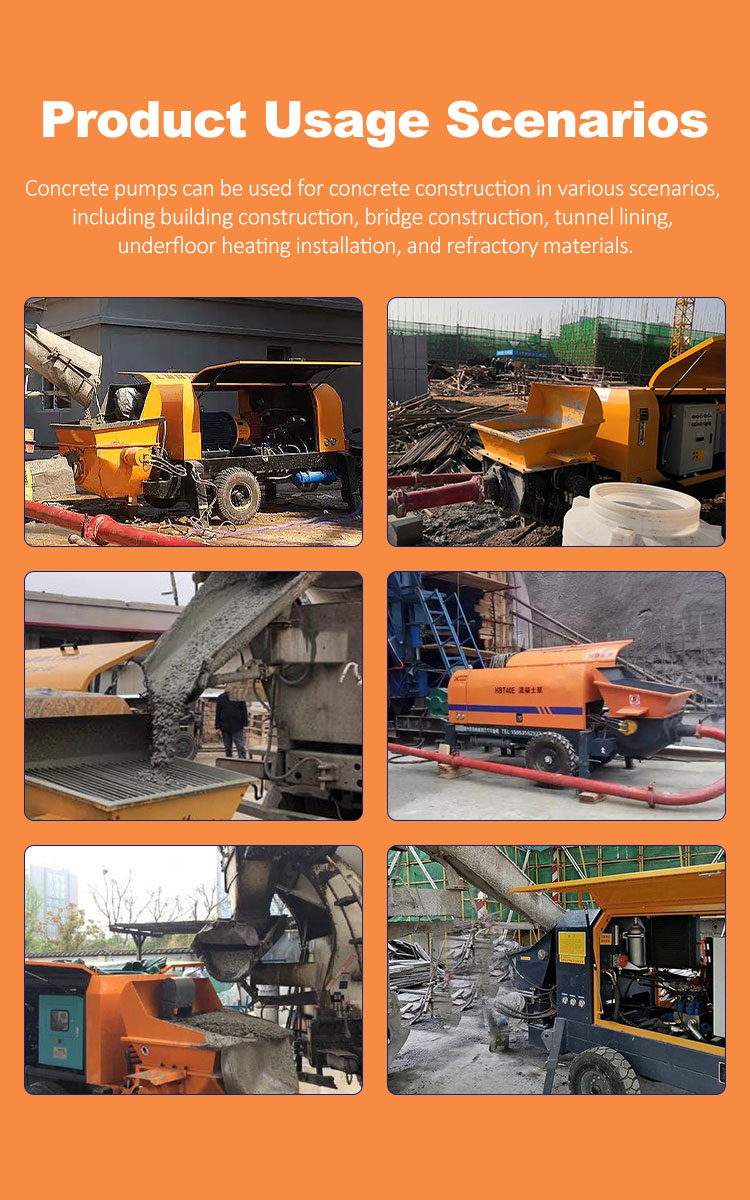

Suitable for structural concrete placement, pressure grouting, foundation reinforcement, floor heating systems, shotcreting, and pumping refractory materials.
Product Parameters
| Model | Power Configuration | Theoretical Output(m³/h) | Working Pressure(MPa) | Max. Aggregate Size | Delivery Distance | Pipe Diameter |
| YG10 | 15 kW (Electric) | 8 - 10 | 10 | ≤15 mm | Vertical: 20-30 m Horizontal: 80-100 m | 80-100 mm |

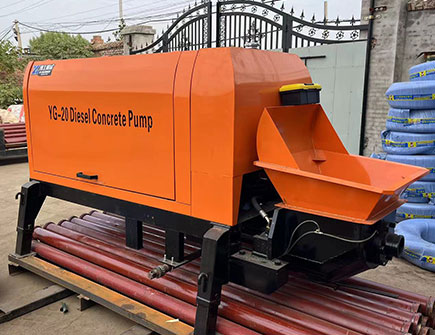

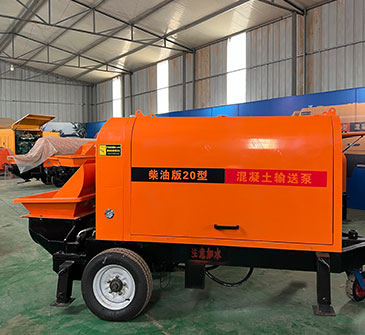

| YG20 | 22 kW / Diesel 4102 | 8 - 12 | 15 | ≤20 mm | Vertical: 40-50 m Horizontal: 80-100 m | 80-100 mm |

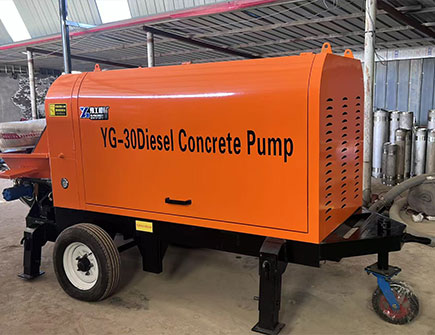

| YG30 | 37 kW / Diesel 4105 | 13 - 15 | 20 | ≤30 mm | Vertical: 20-60 m Horizontal: 50-150 m | 80-125 mm |
| YG40 | 45 kW / Diesel 4108 | 20 - 25 | 23 | ≤40 mm | Vertical: 30-130 m Horizontal: 50-350 m | 80-125 mm |
| YG50 | 55 kW / Diesel 6102 | 30 - 35 | 23 | ≤40 mm | Vertical: 30-150 m Horizontal: 50-500 m | 80-125 mm |

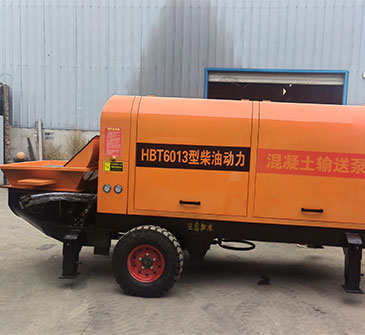

| YG60 | 90 kW (Electric/Diesel) | 55 - 60 | 23 | ≤50 mm | Vertical: 30-150 m Horizontal: 50-500 m | 125 mm |
Still not finding what you're looking for?
Contact our consultants for more available products.
Contact Us

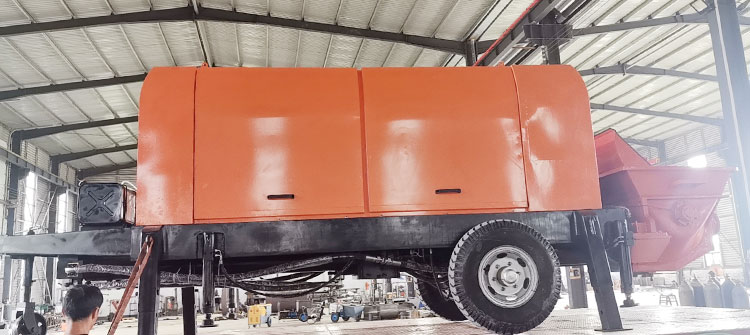

Yugong Factory Display
Henan Yugong Machinery Co., Ltd. is located in Zhengzhou — a national central city of China — where abundant resources and convenient transportation converge. As an integrated large-scale manufacturing enterprise, our company has experienced 19 years of high-speed development, gathered a large number of talents, and earned a sound reputation for quality and reliability.
